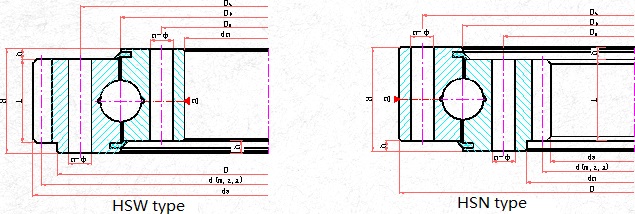

Crossover rolling- HS serial No. Model Dimensions Installation hole size Gear parameters Quality Kg D dn H h Du Dn n ø L da m z x External Data 1 HSW880.32 1000 760 95 12 956 800 24 20 70 1047.5 8 127 1.15 240 2 HSW1020.32 1170 875 95 15 1120 930 24 22 70 1219.3 8 148 1.4 320 3 HSW1220.40 1365 1075 120 15 1310 1130 36 22 90 1424.91 10 138 1.4 463 4 HSW1250.40 1400 1090 120   15 1350 1150 36 22 90 1457.94 10 142 1 480 HSW1250.40A 90 1455.17 12 118 1 5 HSW1435.40 1595 1278 120 15 1535 1335 36 26 90 1655.46 12 134 1.15 577 HSW1435.40A 90 1661.17 14 115 1 6 HSW1540.50 1720 1360 140   18 1660 1420 42 26 110 1780.8 12 144 1.4 864 HSW1540.50A 110 1791.1 14 124 1.15 7 HSW1700.50 1875 1525 140 18 1815 1585 42 29 110 1945.4 14 135 1.15 883 HSW1700.50A 110 1950.8 16 118 1.15 Internal Data 1 HSN880.32 1000 760 95 12.5 956 800 24 20 70 718.18 8 91 0.35 230 2 HSN1020.32 1170 875 95 15 1120 930 24 22 70 830.1 8 105 0.35 310 3 HSN1091.28 1200 1021 90.3 14.8 1162 1048 22 22 74 960.55 10 97 0.5 214 40 M20 4 HSN1250.40 1400 1090 120 15 1350 1150 36 22 90 1037 10 105 0.35 470 HSN1250.40A 90 1029.3 12 87 0.35 5 HSN1435.40 1595 1278 120 15 1535 1335 36 26 90 1221.15 12 103 0.35 570 HSN1435.40A 90 1214.32 14 88 0.35 6 HSN1540.50 1720 1360 140 18 1660 1420 42 26 110 1293.1 12 109 0.35 787 HSN1540.50A 110 1284.8 14 93 0.35 7 HSN1700.50 1875 1525 140 18 1815 1585 42 29 110 1452.66 14 105 0.35 872 HSN1700.50A 110 1452.33 16 92 0.35
